Sale!

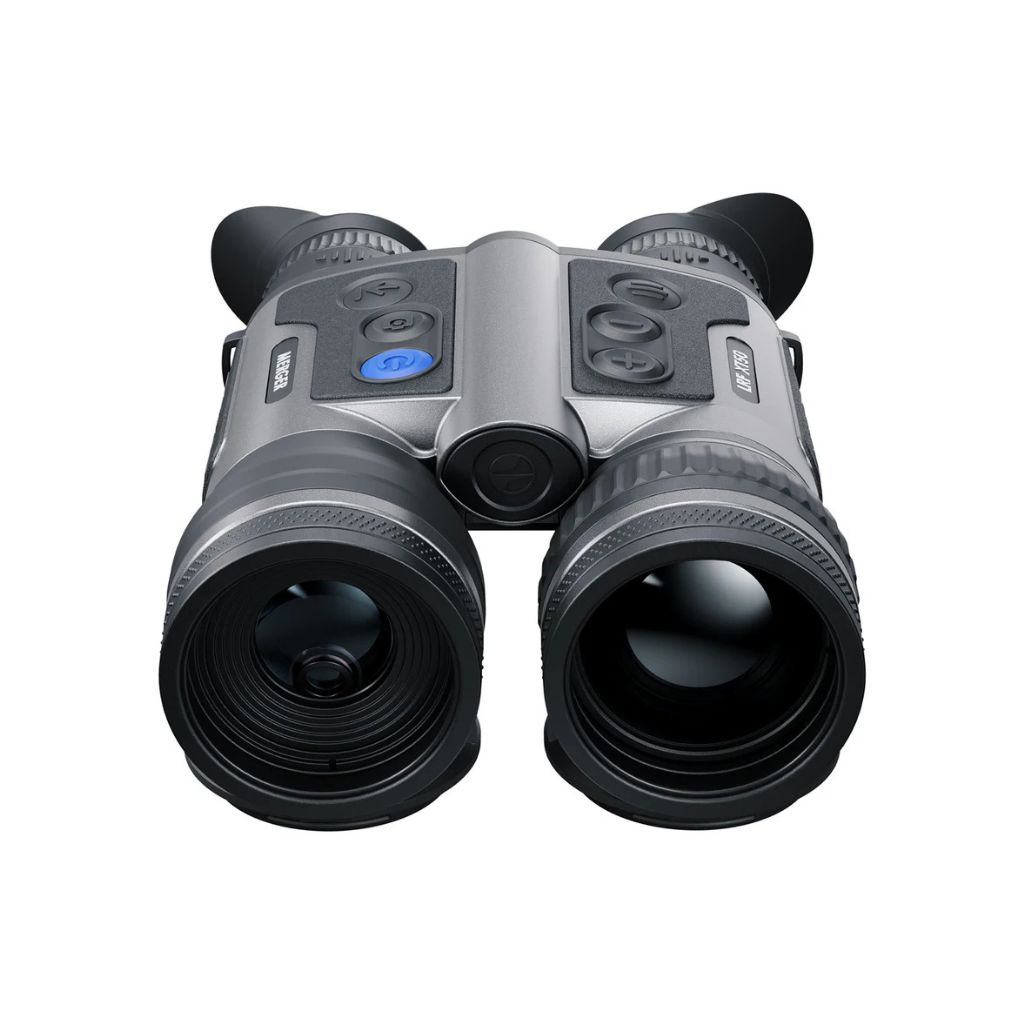

Pulsar Merger LRF XT50

Pulsar Merger LRF XT50 (1280×1024)

Original price was: R134,990.00.Current price is: R119,999.00.

The Merger LRF XT50 sits at the top of Pulsar’s thermal binocular range. Its 1,280×1,024 thermal sensor resolves exceptional detail, and a new 1,280×960 AMOLED micro-display renders that detail crisply to the eye. A wide 17.5° field of view makes it easy to pick up and hold a scene, while 2–16× magnification lets you draw in on distant subjects — all in a comfortable two-eyed binocular design.

Categories: , , Brand:

Description

The Merger LRF XT50 sits at the top of Pulsar’s thermal binocular range. Its 1,280×1,024 thermal sensor resolves exceptional detail, and a new 1,280×960 AMOLED micro-display renders that detail crisply to the eye. A wide 17.5° field of view makes it easy to pick up and hold a scene, while 2–16× magnification lets you draw in on distant subjects — all in a comfortable two-eyed binocular design.

Technical Specifications

Sensor: @ 12 µm 1280×1024
Objective lens: F50 / 1.0
Magnification, x: 2 – 16
FOV (HxV), degrees: 17.5 х 14
FOV (HxV), m@100m: 30.7 х 24
Diopter Adjustment, D: -5/+4
Detection range: 2300 m
Sensor
Type: uncooled
Resolution, pixels: 1280×1024
Pixel pitch, µm: 12
Sensor NETD, mK: < 40
System NETD, mK: < 20
Frame rate, Hz: 50
Optics
Objective lens: F50 / 1.0
Magnification, x: 2 – 16
FOV (HxV), degrees: 17.5 х 14
FOV (HxV), m@100m: 30.7 х 24
Diopter Adjustment, D: -5/+4
Interpupillary distance adjustment, mm: 62 – 74
Eye relief, mm: 15
Display
Type: AMOLED HD
Resolution, pixels: 1280х960
Laser rangefinder
Max. measuring range, m: 1500
Measurement accuracy, m: ± 1
Safety class for laser equipment: according to IEC 60825-1:2014: 1
Wavelength, nm: 905
Video recorder
Video / photo resultion, pixel: 1280х960
Video / photo format: .mp4 / .jpg
Build-in memory, GB: 64
WI-FI
Wireless protocol: Wi-Fi
Wireless standard: IEEE 802.11 b/g/n/ac (WPA)
Frequency, Ghz: 2.4 / 5
Environmental characteristics
Degree of protection – IP code (IEC60529): IPX7 (waterproof):
Operating temperature range, °С: -25 – +50
Connections and compatibilities
Mount type: 1/4″ socket
Supported application: Stream Vision 2
Power supply
Output voltage, V: 3.7
Battery type: Dual Li-Ion Battery Pack: APS3 / 3200 mAh / DC 3.7 V (removable) and 4000 mAh / DC 3.7 V (built-in)
Capacity, mAh: 3200 (external) + 4000 (internal)
Operating time on battery pack, h: at t=22°С 6
External power supply, V: 5V (USB type-C)
Weight & size
Body material: Magnesium alloy
Dimensions, mm: 197x140x72
Weight, kg: 0.95 (batteries included)
