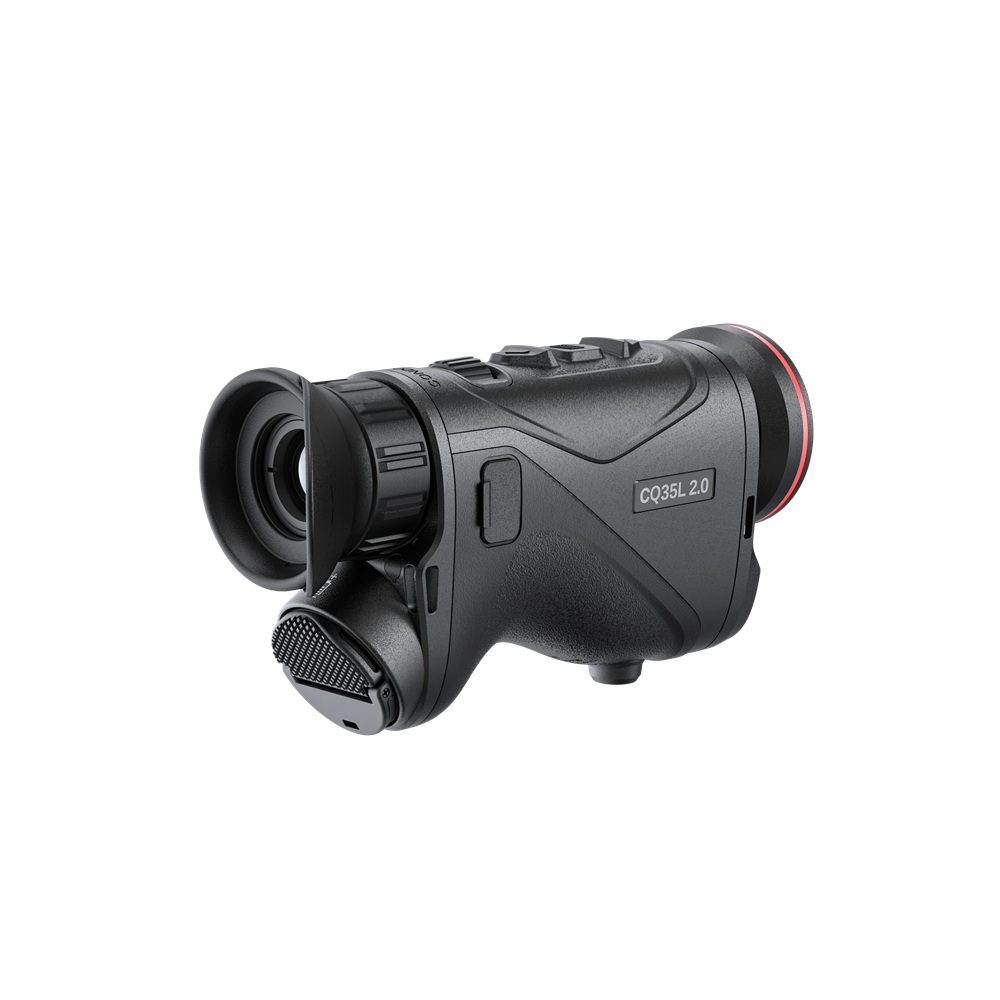

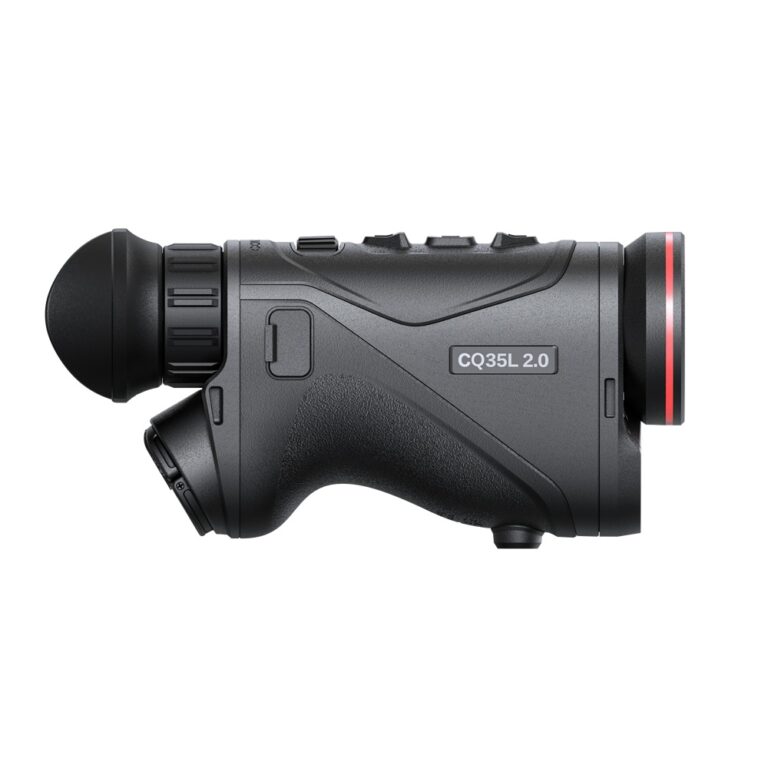

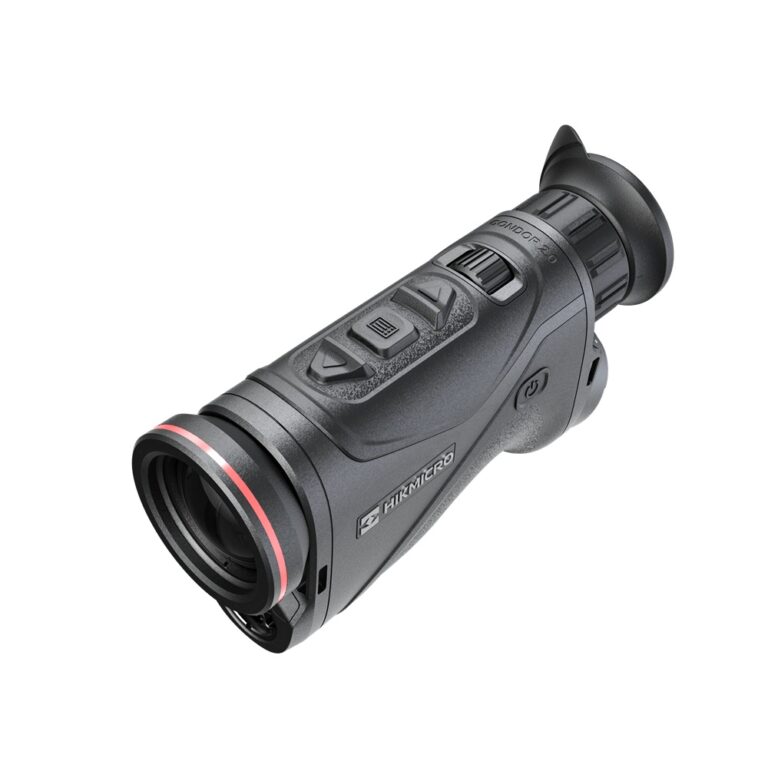

HIKMICRO Condor LRF CQ35L 2.0 Handheld Thermal Monocular

R55,690.00

The HIKMICRO Condor LRF CQ35L 2.0 is a compact handheld thermal monocular built for precision and ease of use. Featuring a 640×512 @12μm detector (NETD <15mK), a 35mm F1.0 lens with detection range up to 1,800m, a crisp 1,920×1,080 OLED display, and a laser rangefinder accurate to 1000m, it delivers clear thermal imaging in any light or weather. Ideal for wildlife observation, tracking, search and rescue, and marine use.

Categories: , , Brand:

Description

The HIKMICRO Condor LRF CQ35L 2.0 combines a compact, ergonomic design with serious thermal imaging performance. Its 640×512 @12μm thermal detector offers exceptional sensitivity (NETD <15mK), capturing fine detail regardless of weather or lighting conditions — from dense fog to total darkness.

Paired with a 35mm F1.0 germanium lens, the CQ35L 2.0 offers a wide 12.5° × 10.0° field of view and a detection range of up to 1,800m, with 1.9x base magnification for fast scanning across open terrain. A 0.49″ 1,920×1,080 OLED display, combined with HIKMICRO’s shutterless imaging system (HSIS), delivers a smooth, immersive viewing experience with no interruptions from shutter recalibration.

The built-in laser rangefinder provides precise distance measurement up to 1000m (minimum 10m), giving users confidence in identification and range at a glance. Weighing just 458g and rated IP67 for dust and water resistance, the CQ35L 2.0 operates reliably from -30°C to 55°C.

Powered by a replaceable, rechargeable 21700 battery offering over 6.5 hours of continuous use, and equipped with 64GB built-in storage and WiFi connectivity for real-time sharing via the HIKMICRO Sight app, the CQ35L 2.0 is well suited to wildlife observation and animal tracking, birding, search and rescue operations, security and surveillance, and marine navigation.

Technical Specifications

Thermal Module

  • Image Sensor: VOx Uncooled Focal Plane Array
  • Resolution: 640 × 512
  • Frame Rate: 50 Hz
  • Pixel Pitch: 12 μm
  • Response Waveband: 8–14 μm
  • NETD: <15 mK (@25°C, F#=1.0)
  • Lens (Focal Length): 35 mm, F1.0
  • Focus Mode: Rear Focus Wheel
  • Focusing Distance: 3.5 m
  • Magnification: 1.9× base, up to 15.2× (8× digital zoom)
  • Field of View (H×V): 12.5° × 10.0° / 21.9 m × 17.5 m @100 m
  • Detection Range: 1,800 m

Image Display

  • Display: 1,920 × 1,080, 0.49″, OLED
  • Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
  • Exit Pupil: 8 mm | Eye Relief: 15 mm | Diopter: -5D to +3D
  • HSIS, Zoom Pro, Image Pro 2.0: Yes

System

  • Storage: 64 GB built-in
  • Wi-Fi: 2.4/5 GHz
  • Video/Snapshot/Album/Standby/PIP/Hot Track/Distance Measurement/Audio Recording: Yes

Power

  • Battery: Replaceable/rechargeable 21700
  • Operating Time: ≥6.5 h (@25°C, Wi-Fi, Zoom Pro, LRF on)
  • Charging: USB-C, 5V/2A, direct charging supported

General

  • Temperature/Humidity: -30°C to 55°C; ≤90% humidity
  • Protection: IP67
  • Dimensions: 179.2 × 87.7 × 64.5 mm
  • Weight: 458 g with battery

Laser Rangefinder

  • Laser Class: 1
  • Wavelength: 905 nm
  • Measuring Range: 10 m to 1,000 m
  • Accuracy: ±1 m

Key Features

  • High sensitivity thermal module NETD < 15 mK (@25° C, F#=1.0)
  • 640 × 512 resolution with 12 μm sensor
  • 35 mm, F1.0 lens with detection range up to 1,800 m
  • 1,920 × 1,080 resolution 0.49-inch OLED display
  • HIKMICRO Shutterless Image System (HSIS)
  • 5 h+ continuous operation time with replaceable and rechargeable 21700 battery
  • 458 g lightweight, ergonomic compact shape
  • Integrated laser rangefinder up to 1,000 m

What's in the Box

  • HIKMICRO Condor LRF CQ35L 2.0 Handheld Thermal Monocular
  • Neck Strap
  • Hand Strap
  • Lens Cloth
  • Quick Start Guide
  • Protective Bag
  • Power Cable
  • Battery (x2)
  • Battery Charger
