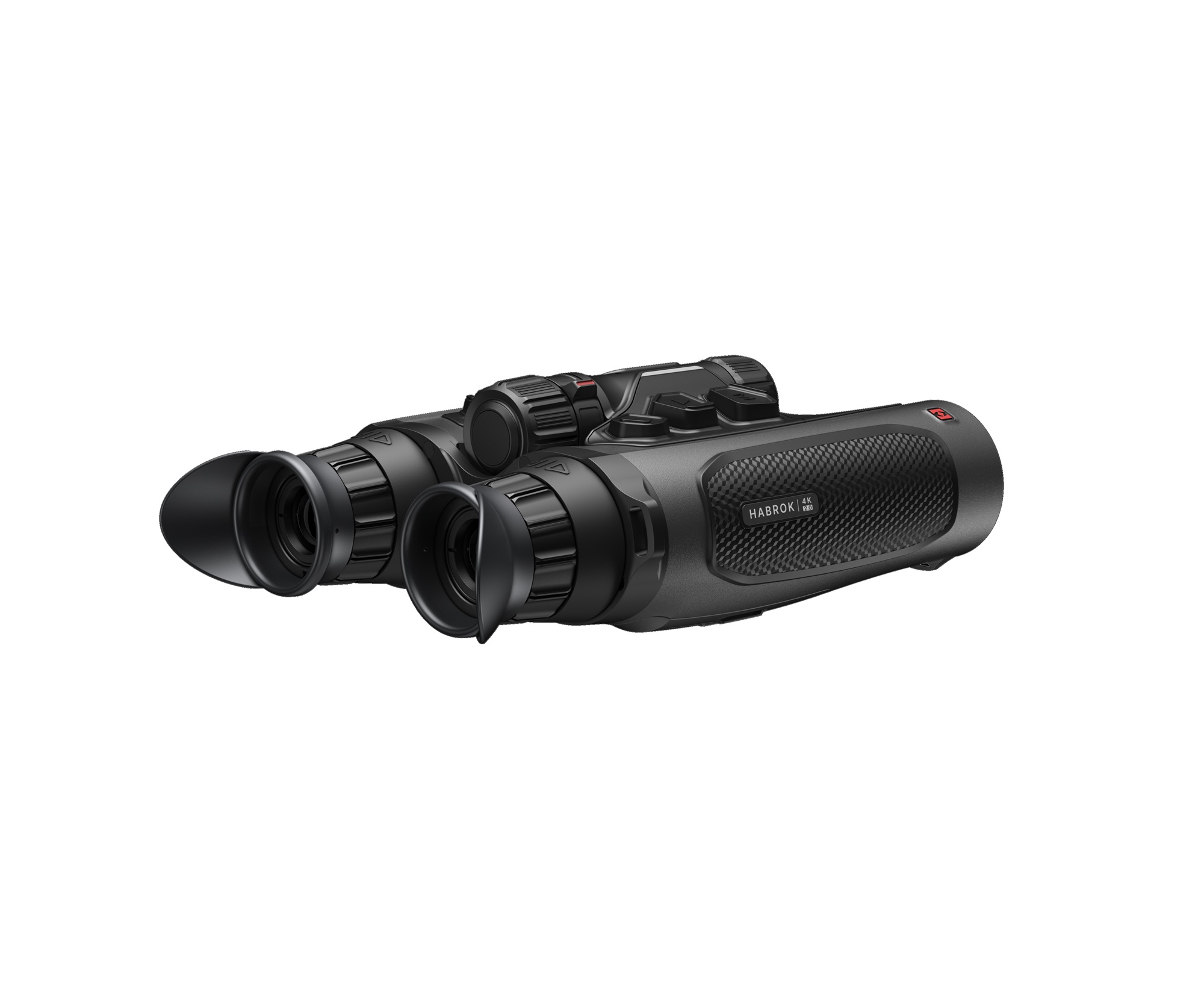

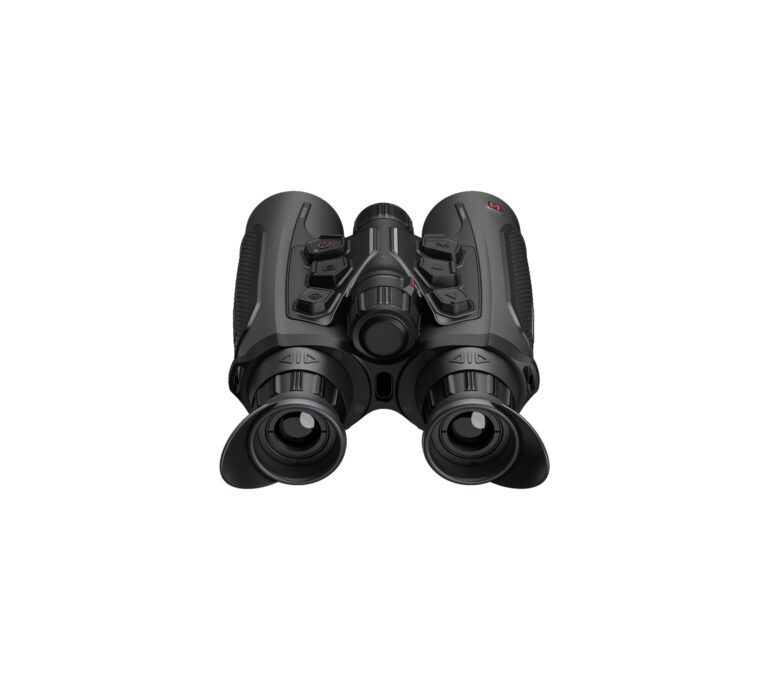

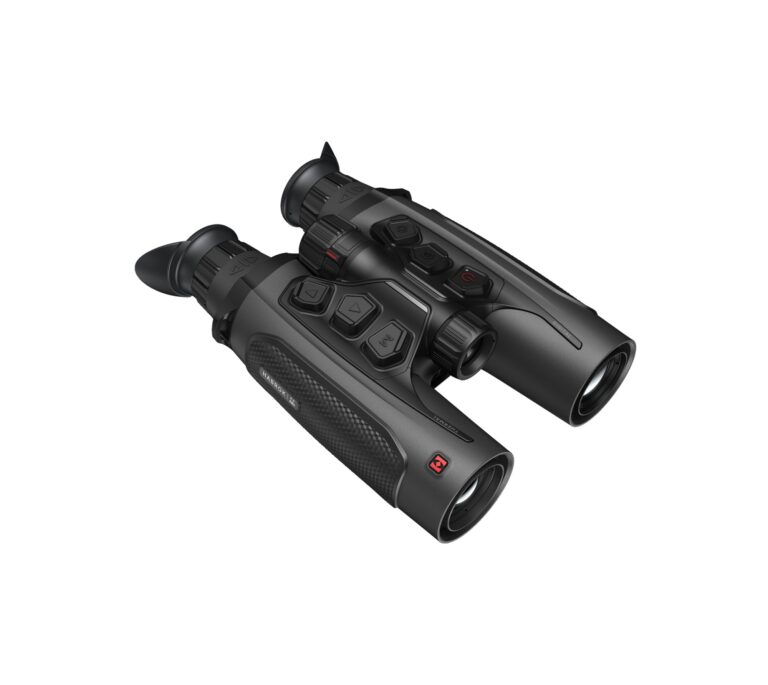

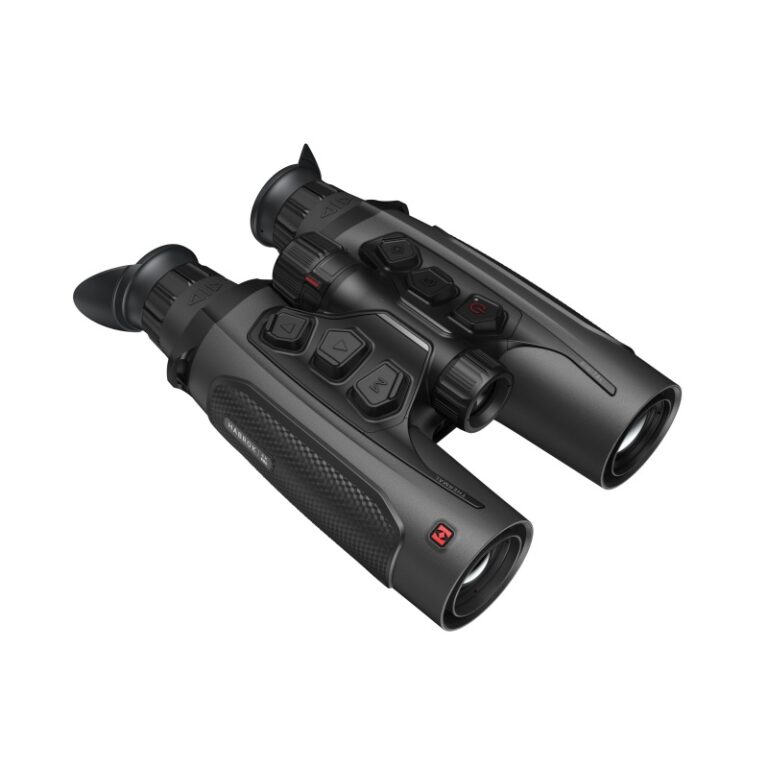

Habrok HE25L 2.0 – 4K 5.5-22X60 Multi-Spectrum Binocular
R33,010.00
HIKMICRO Habrok 4K HE25L 2.0 Multi-Spectrum Binocular.
The HE25L 2.0 is a powerful and innovative digital and thermal binocular designed especially for daytime use. Combined with a 256 thermal detector, an advanced 4K digital detector for a 5.5x to 22x @60 mm lens, and a 1,000m laser rangefinder, this all-in-one binocular can be mainly applied in birding, animal searching, adventuring, and rescuing in various weather conditions.
Description
HIKMICRO Habrok 4K HE25L 2.0 Multi-Spectrum Binocular. The HE25L 2.0 is a powerful and innovative digital and thermal binocular designed especially for daytime use. Combined with a 256 thermal detector, an advanced 4K digital detector for a 5.5x to 22x @60 mm lens, and a 1,000m laser rangefinder, this all-in-one binocular can be mainly applied in birding, animal searching, adventuring, and rescuing in various weather conditions.
Key Features
- 256 × 192 resolution @12 μm thermal detector
- High sensitivity thermal module NETD < 18 mK (@25°C, F# = 1.0)
- 25 mm, F1.0 lens with thermal detection range up to 1,200 m
- 3,840 × 2,160 4K ultra high-resolution CMOS detector
- 60 mm, F2.2 digital lens with 5.5x to 22x digital zoom
- HIKMICRO Shutterless Image System (HSIS)
- 940 nm & 850 nm replaceable IR illuminators and Laser Rangefinder of 1,000 m distance
- 895g lightweight, with a compact and ergonomic design
Technical Specifications
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 256 × 192
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 18 mK (@25°C), F#=1.0
Lens (Focal Length) 25 mm, F1.0
Focus Mode Rear Focus Wheel
Detection Range 1200 m
Min. Focusing Distance 3 m
Magnification
4.3x~17.2x (4x)
Support 2×, 3x, 4x, 5x Zooming Value, Support Zoom in and out
Field of View(H × V), Degrees
/ m @100m
7.0° × 5.3°/12.2 m × 9.3 m
Optical Module
Image Sensor 1/1.8 Progressive Scan CMOS
Max. Resolution 3840 × 2160
Focal Length 60 mm, F2.2
Min. Working Distance 8 m
Focus Mode Rear Focus Wheel
Magnification
5.5x~22.0x（4x)
Support 2×, 3x, 4x, 5x Zooming Value, Support Zoom in and out
Field of View (H × V),
Degrees/m @100 m
7.3° x 4.1°/12.8 m × 7.2 m
Smart IR Yes
IR Illuminator Wavelength 940 nm (default) and 850 nm (replaceable)
Viewing Range at Night 400 m
Replaceable IR Illuminator Yes
Image Display
Display 0.49 inch, OLED, 1920 × 1080
Palettes
Thermal: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green
Monochrome; Optical: Day, Night, Auto, Green, Yellow
Exit Pupil 8 mm
Eye Relief 15 mm
Diopter (Range) -5D~+3D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Contrast Adjustment Yes
Electric Image Stabilization Supports Both Thermal and Digital Channels, Starting from 2x
Zoom Pro Yes
HSIS (HIKMICRO Shutterless
Image System)
Yes
System
Record Video Yes
Capture Snapshot Yes
Audio Recording Yes
Standby Mode Yes
Storage Built-in EMMC (64 GB)
PIP Yes
Hotspot Yes
Hot Track Yes
Digital Magnetic Compass Yes
GPS Yes
Local Album Yes
Power Supply
Battery Type Replaceable and Rechargeable Li-ion Battery
Battery Operating Time ≥6.5 h (25 °C, with hotspot and LRF on)
Type-C Power Supply
5V DC, 2 A
Supports External Power Supply, Supports Direct Charging
General
Protection Level IP67
Dimension 143.1mm × 74.8 mm × 223.3 mm (5.63″ × 2.95″ × 8.8″)
Working Temperature -30℃~+55℃
Weight 895g without Batteries
Interpupillary Adjustment
Range
60 mm to 74 mm
Mounting Adapter 1/4“-20-UNC
Laser Rangefinder
Safety Class for Laser Class 1
Wavelength 905 nm
Max. Measuring Range 1000 m
Measurement Accuracy ±1 m
Min. Measuring Range 10 m
What's In The Box
- HIKMICRO Habrok Pro HX60LS Multi-Spectrum Binocular
- Quick Start Guide
- Type-C Cable
- Lint-free Cloth
- Battery x4
- Tripod Adapter
- Replaceable IR Illuminator
- Neck Strap
